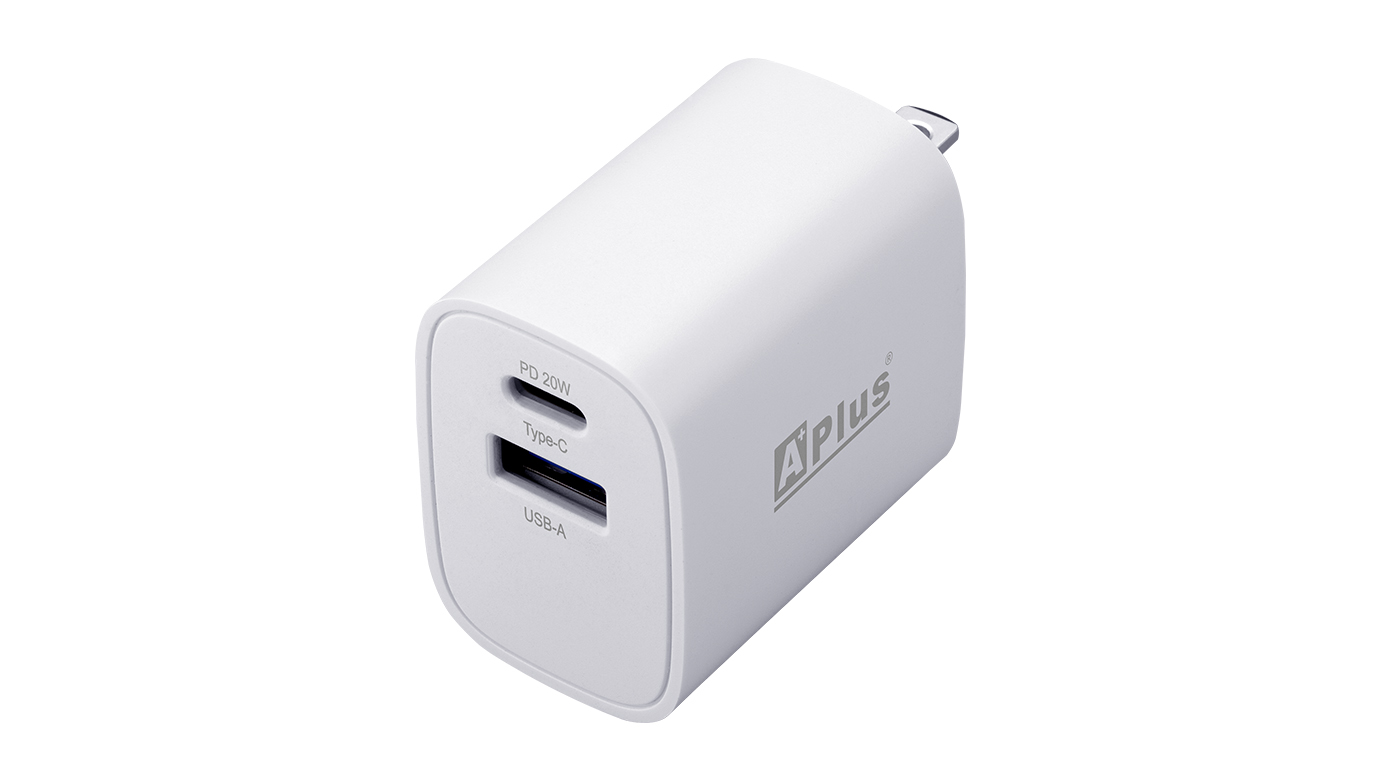

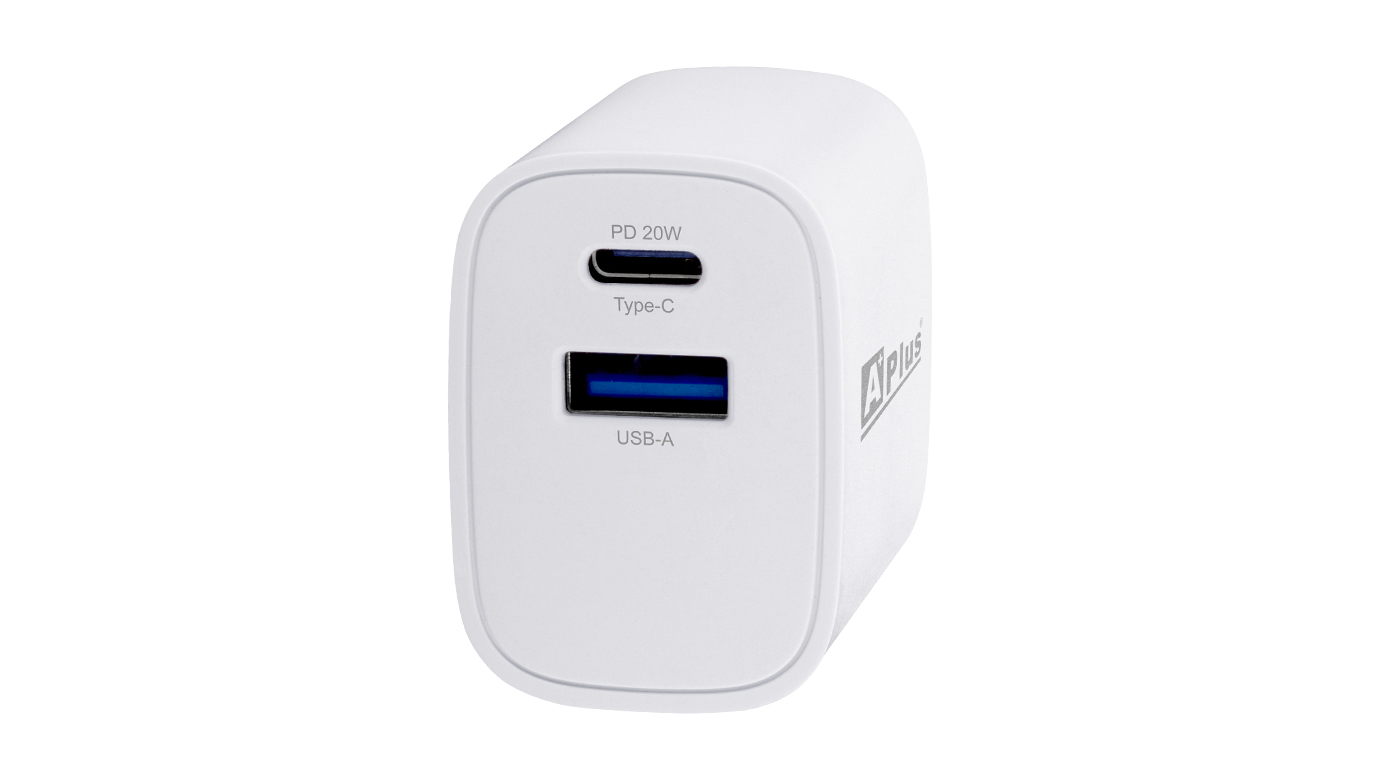

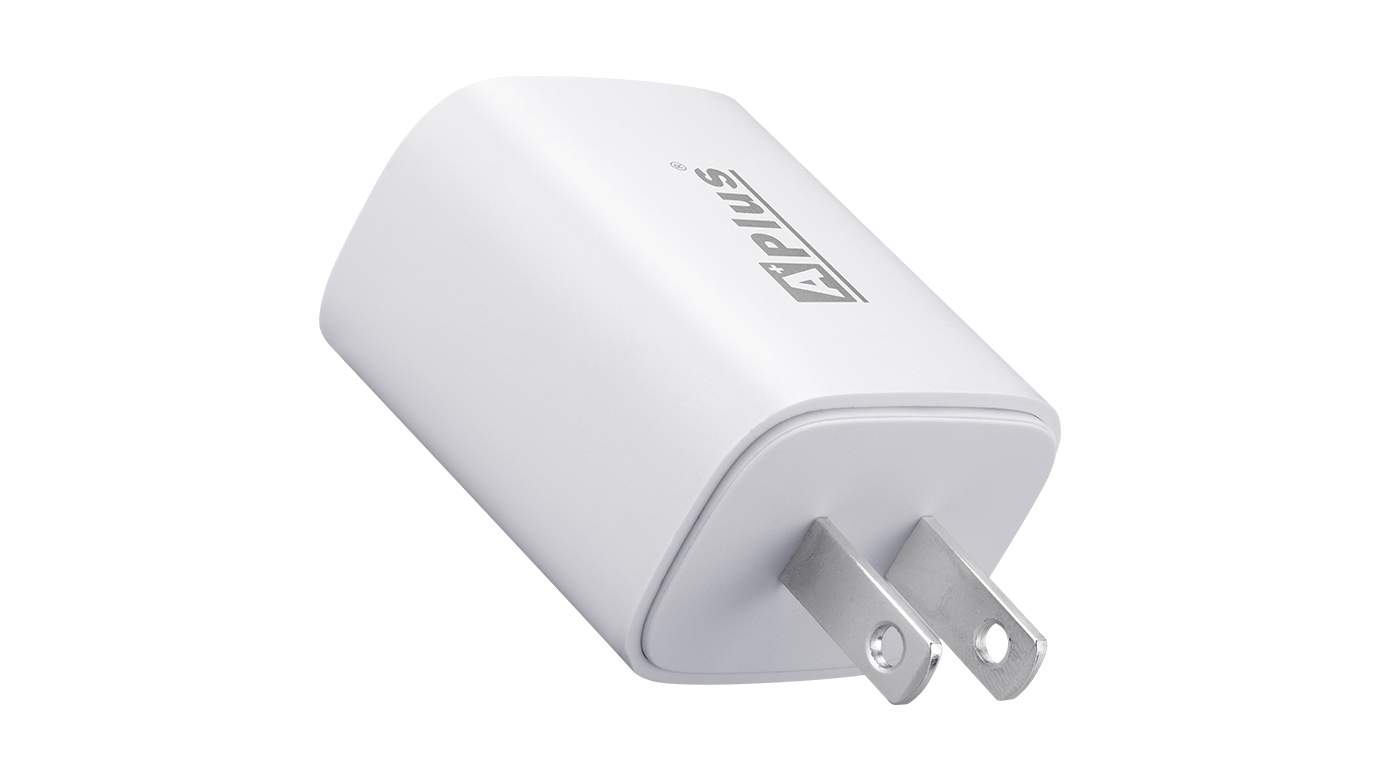

PlusCharger 7 Series
PD 20W
The PlusCharger 7-PD20W is a 20W Power Adaptor with dual USB-C & USB-A charge ports that can quickly and efficiently charge your USB devices. It is compatible with PD 2.0/3.0, QC 2.0/3.0, FCP, SCP fast charging protocol and supports charging mode of BC1.2/Samsung 2A/Apple 2.4A. The USB DCP automatically detects the charging mode for the different USB device and adjusts to maximum charge current. Built-in intelligent IC chip provides multiple security protection against short circuit, temperature control, overvoltage and overcharge. The compact design of PlusCharger 7-PD20W makes it ideal to use at home, in the office, or during travelling.
● Compatible with fast charging protocol of PD 2.0/3.0, QC 2.0/3.0, FCP, SCP and support charging mode of BC1.2/Samsung 2A/Apple 2.4A
● USB DCP automatically detects the charging mode for the different USB device and adjusts to maximum charge current
● Built-in intelligent IC chip provides protection against short circuit, temperature control, overvoltage and overcharge
● Compact & portable design makes it ideal to use at home or office, or during traveling
● Wide compatibility with various USB devices
● Powerful(Maximum) 20W output
● USB DCP automatically detects the charging mode for the different USB device and adjusts to maximum charge current
● Built-in intelligent IC chip provides protection against short circuit, temperature control, overvoltage and overcharge
● Compact & portable design makes it ideal to use at home or office, or during traveling
● Wide compatibility with various USB devices
● Powerful(Maximum) 20W output
MODEL | PlusCharger 7-PD20W |
Wattage | 20W |
INPUT | |
Voltage | 100-240Vac |
Frequency | 50/60Hz |
Current | 0.55A |
OUTPUT | |
USB-C (PD) | 5VDC⎓3A or 9VDC⎓2.22A or 12VDC⎓1.67A Normal Output: 5VDC⎓3A |
USB-A (QC) | 5VDC⎓3A or 9VDC⎓2A or 12VDC⎓1.5A Normal Output: 5VDC⎓3A |
Dual USB-C (PD) & USB-A (QC) | 5VDC⎓3A Max. |
ENVIRONMENT | |
Operating Temperature | 0°C-40°C (32°F-104°F) |
PHYSICAL | |
Net Weight | 46g |
Dimension (D*W*H) | 60*30*40mm |
