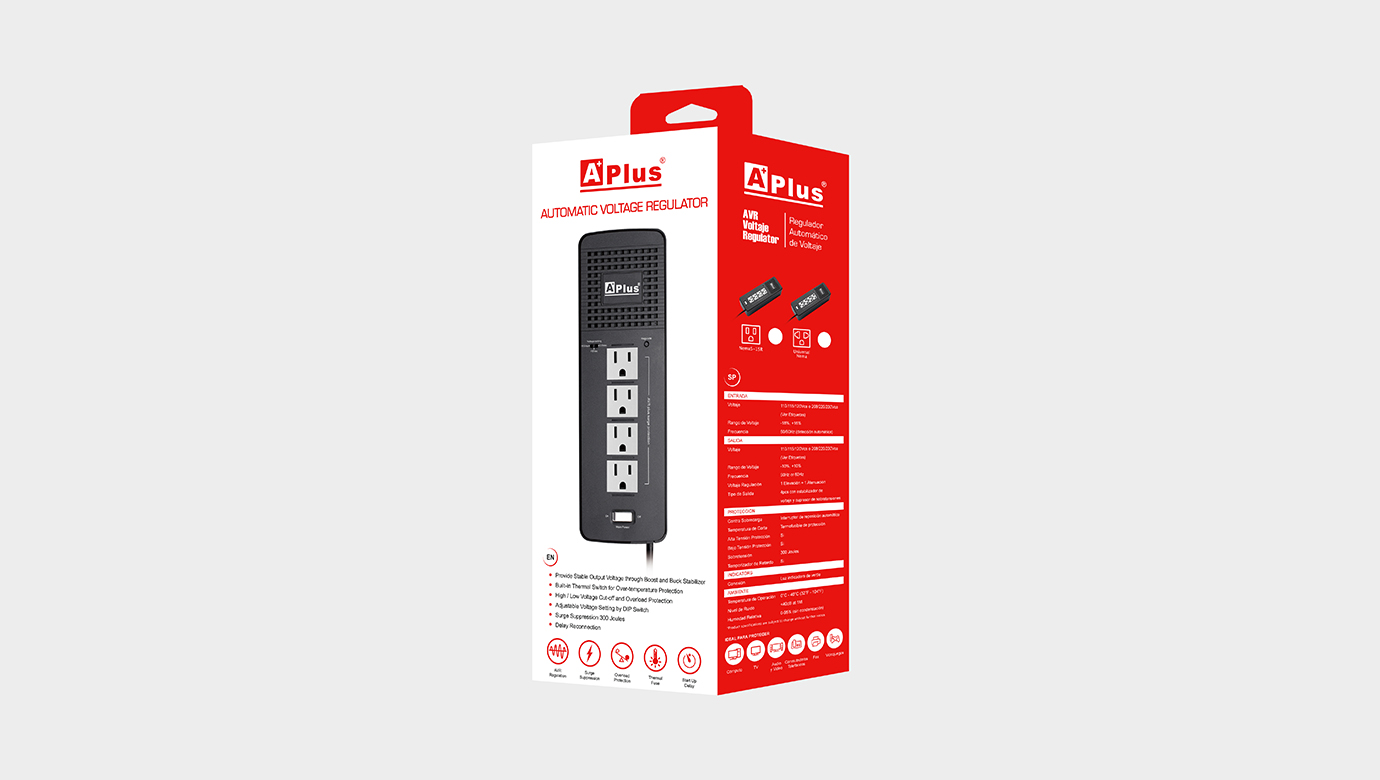

PlusShield 10 Series
1000VA
The PlusShield 10 Series 1000VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.

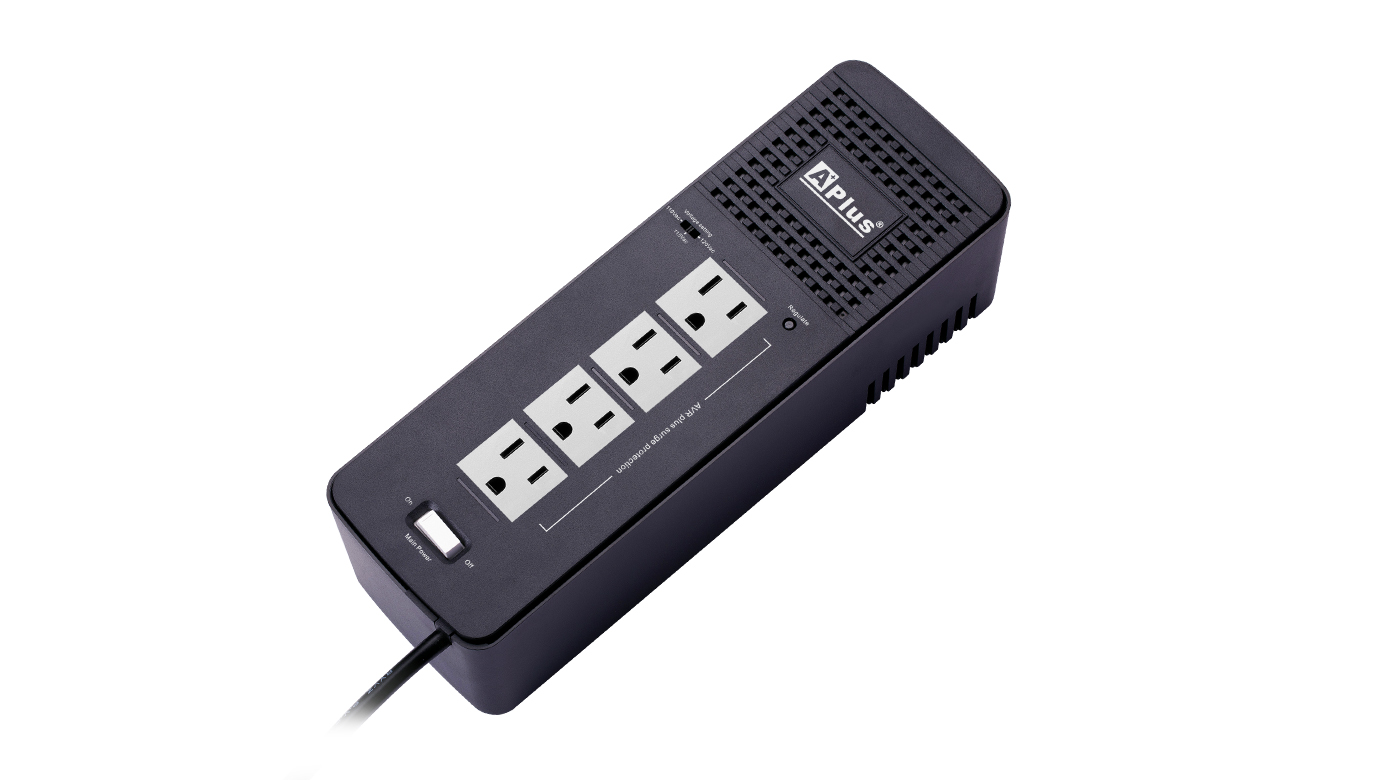

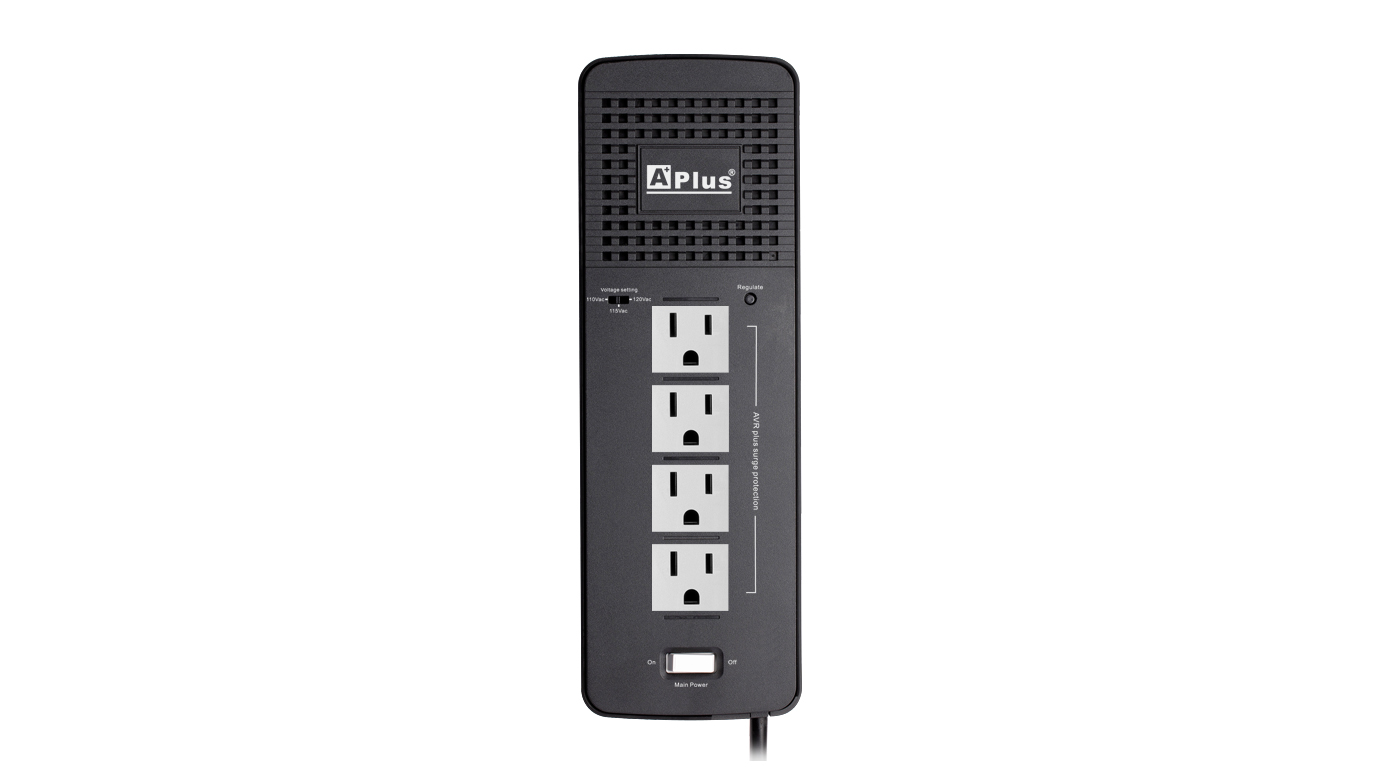

The model is integrated with 2 steps regulation, 4 protected outlets, delay reconnection and LED status indicator in a compact slim unit. PlusShield 10 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
The model is integrated with 2 steps regulation, 4 protected outlets, delay reconnection and LED status indicator in a compact slim unit. PlusShield 10 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
● Provide stable output voltage through boost and buck stabilizer
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Power switch with resettable circuit breaker
● Adjustable voltage setting by DIP switch
● Surge suppression 300 Joules
● Delay reconnection
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Power switch with resettable circuit breaker
● Adjustable voltage setting by DIP switch
● Surge suppression 300 Joules
● Delay reconnection
| MODEL | PlusShield 10-1000N |
| CAPACITY | 1000VA/500W |
| INPUT | |
| Voltage | 110/115/120Vac |
| Voltage Range | -18%, +16% |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| OUTPUT | |
| Voltage | 110/115/120Vac |
| Voltage Range | -10%, +10% |
| Frequency | 50Hz or 60Hz |
| Steps of Regulation | 1 Boost + 1 Buck |
| Outlet: Nema5-15R | 4pcs AVR/Surge protected |
| PROTECTION | |
| Overload | Manual Reset Circuit Switch |
| Over-temperature | Thermal Switch |
| Over-voltage Cut-off | Yes |
| Low-voltage Cut-off | Yes |
| Surge Suppression | 300 Joules |
| Delay Timer | Yes |
| STATUS INDICATOR | |
| Regulation | Yellow |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | <95% (Non-condensing) |
| Acousitc Noise | <40dB at 1M |
*The capacity of connected loading do not exceed the capacity of AVR.
