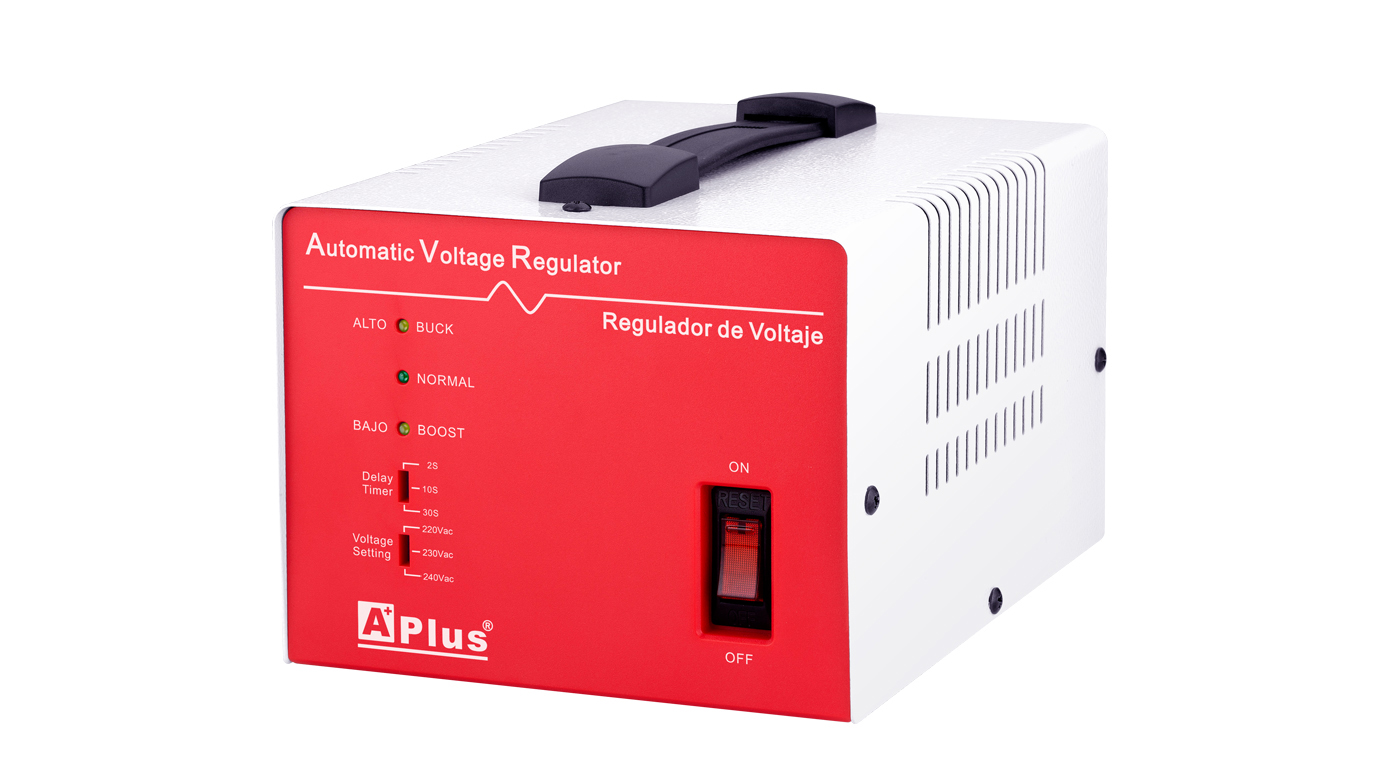

PlusShield 12 Series
2000VA & 3000VA
The PlusShield 12 Series 2000VA & 3000VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.
Featuring 2000VA & 3000VA integrated with 3 steps regulation, 2/10/30 sec. delay reconnection in a compact unit. PlusShield 12 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
Featuring 2000VA & 3000VA integrated with 3 steps regulation, 2/10/30 sec. delay reconnection in a compact unit. PlusShield 12 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
● Provide stable output voltage through boost and buck stabilizer
● Built-in thermal switch for over-temperature protection
● DIP switch of 220/230/240Vac voltage adjustment
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
● Built-in thermal switch for over-temperature protection
● DIP switch of 220/230/240Vac voltage adjustment
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
| MODEL | PlusShield 12-2000UN | PlusShield 12-3000UN |
| CAPACITY | 2000VA/1200W | 3000VA/1800W |
| INPUT | ||
| Voltage | 220/230/240Vac | |
| Voltage Range | -25%, +20% | |
| Frequency | 50Hz or 60Hz (Auto-sensing) | |
| OUTPUT | ||
| Voltage | 220/230/240Vac | |
| Voltage Range | +/-10% | |
| Frequency | 50Hz or 60Hz | |
| Steps of Regulation | 2 Boost + 1 Buck | |
| Outlet: EURO-US |
3pcs for AVR/Surge protectoed | |
| PROTECTION | ||
| Overload | Manual Reset Circuit Switch | |
| Over-temperature | Thermal Switch | |
| Over-voltage Cut-off | Yes | |
| Low-voltage Cut-off | Yes | |
| Surge Suppression | 320 Joules | |
| Delay Timer | Selectable 2 sec. / 10 sec. / 30 sec. | |
| STATUS INDICATOR | ||
| AC Normal | Green | |
| Boost LED | Yellow | |
| Buck LED | Yellow | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Noise Level | <40dB at 1M | |
| Relative Humidity | <95% (Non-condensing) | |
| PHYSICAL | ||
| Dimension (D*W*H) | 220*140*110mm | |
*The capacity of connected loading do not exceed the capacity of AVR.
